STM32F411CEU6 Development Board.

Better & Faster than STM32F103 Blue Pill

Super fast 100MHz ARM 32bit Cortex-M4 CPU with Hardware Floating Point

512K Flash 128K RAM (Blue pill has 128k/64k Flash & 20k RAM)

Breadboard Friendly - Great for prototyping.

Matrix Board Friendly - Ideal for finished projects.

100MHz Clock frequency & 32.768Khz crystal for RTC.

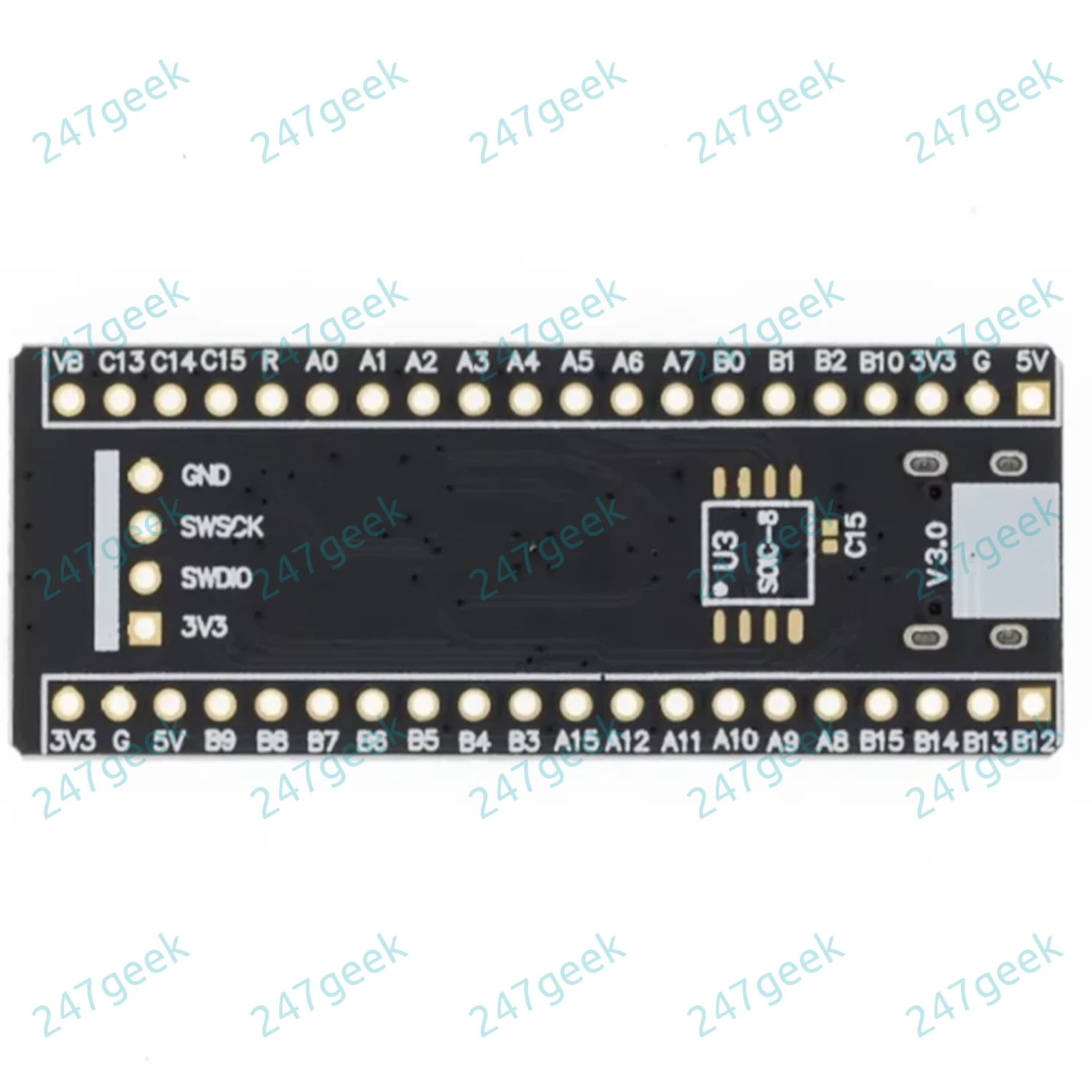

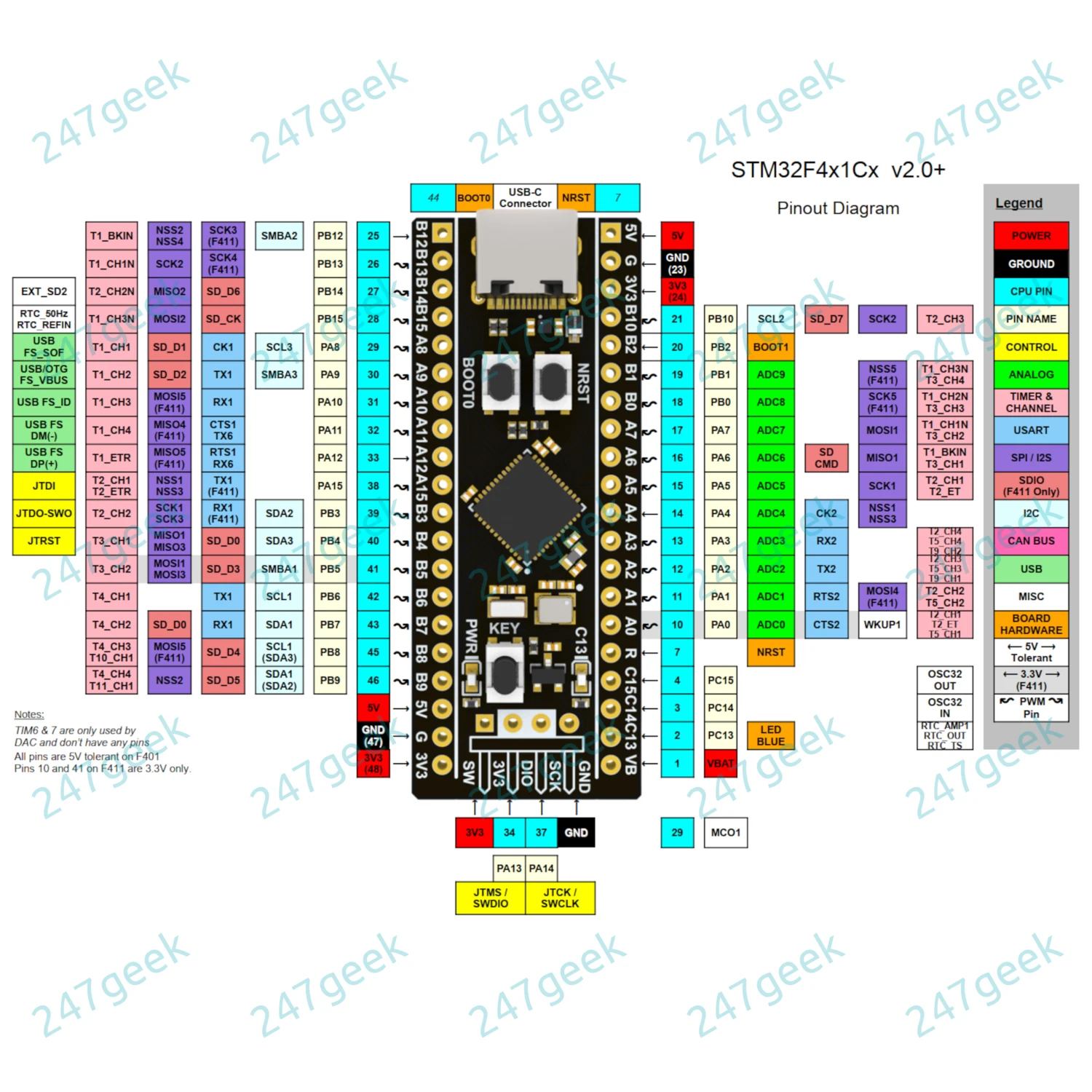

All I/O pins broken out to 0.1" 2.54mm header pins (supplied)

KEY (USER), Reset & Boot0 Buttons / LED on PC13 & PWR LED

Program using USB-C cable or program/debug with ST-Link V2 / DAPLINK (see below for link)

USB-C interface for Power & USB Operation.

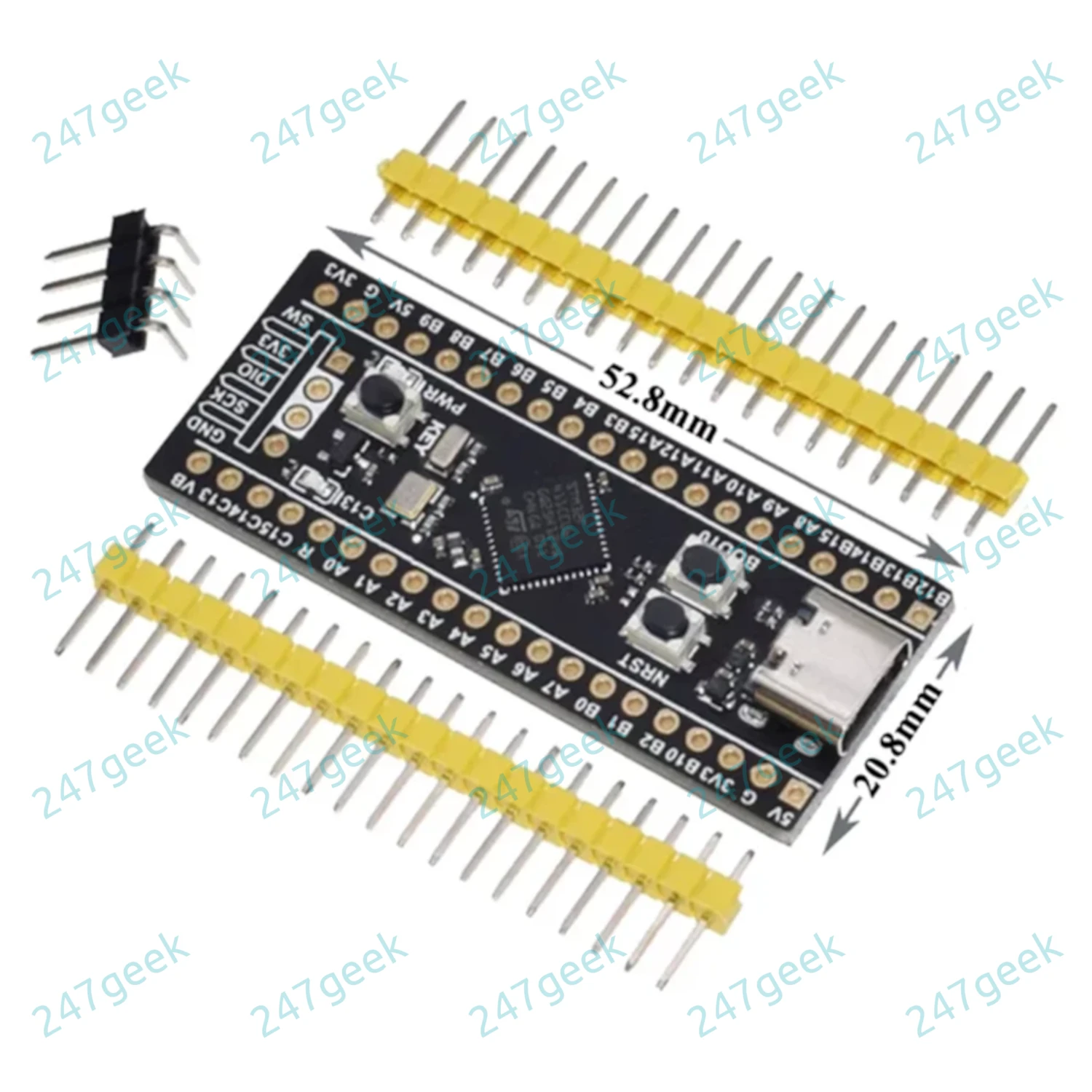

Size:  52.8mm x 20.8mm

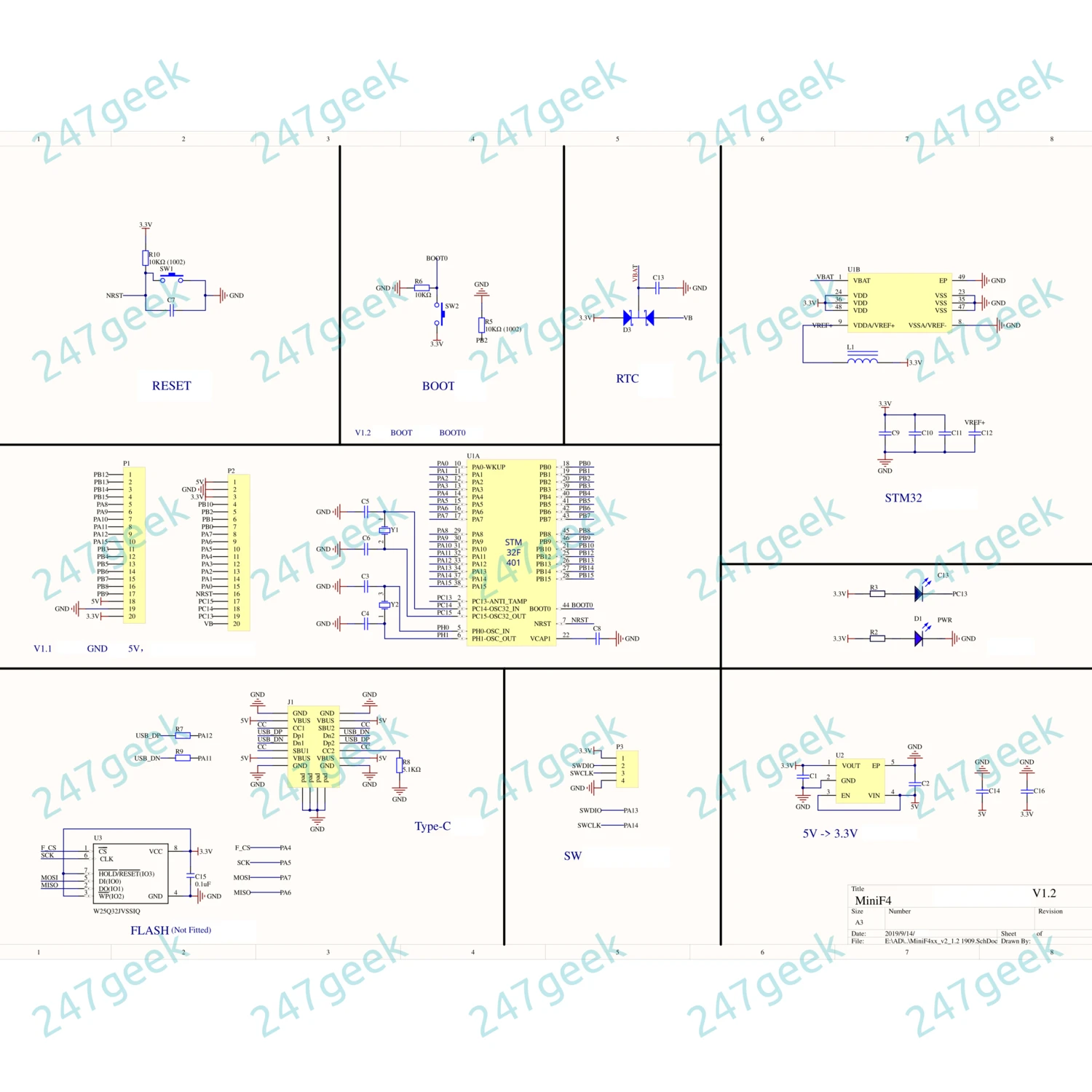

Circuit Diagram / Schematic here:

https://247geek.co.uk/downloads/STM32F411-schematic.pdf

Compatible with Arduino IDE - info here:

https://github.com/stm32duino/Arduino_Core_STM32#getting-started

https://github.com/stm32duino/wiki/wiki/Getting-Started

https://blog.hobbycomponents.com/?p=758

More info here:

https://github.com/stm32duino/wiki/wiki/Upload-methods#stm32cubeprogrammer

Board has 3 buttons BOOT0/RESET/KEY(USER) & 2 LEDS -RED=PWR, BLUE=USER (PC13)

Program using SWDIO/SWCLK & STLINK/JLINK/DAPLINK debugger/programmer

OR connect USB-C to computer & use DFU fw update mode (either method can be used with Arduino IDE)

DFU Method 1: Press and hold the BOOT0 button, then press & release the reset button, wait another 0.5 seconds then release the BOOT0.

DFU Method 2: Hold down the BOOT0 key when power is off, and release the BOOT0 key 0.5S after power on.

No need for USB to serial port, no debugger, no computer driver, just a TYPE-C data cable to complete the firmware download

Package Includes:

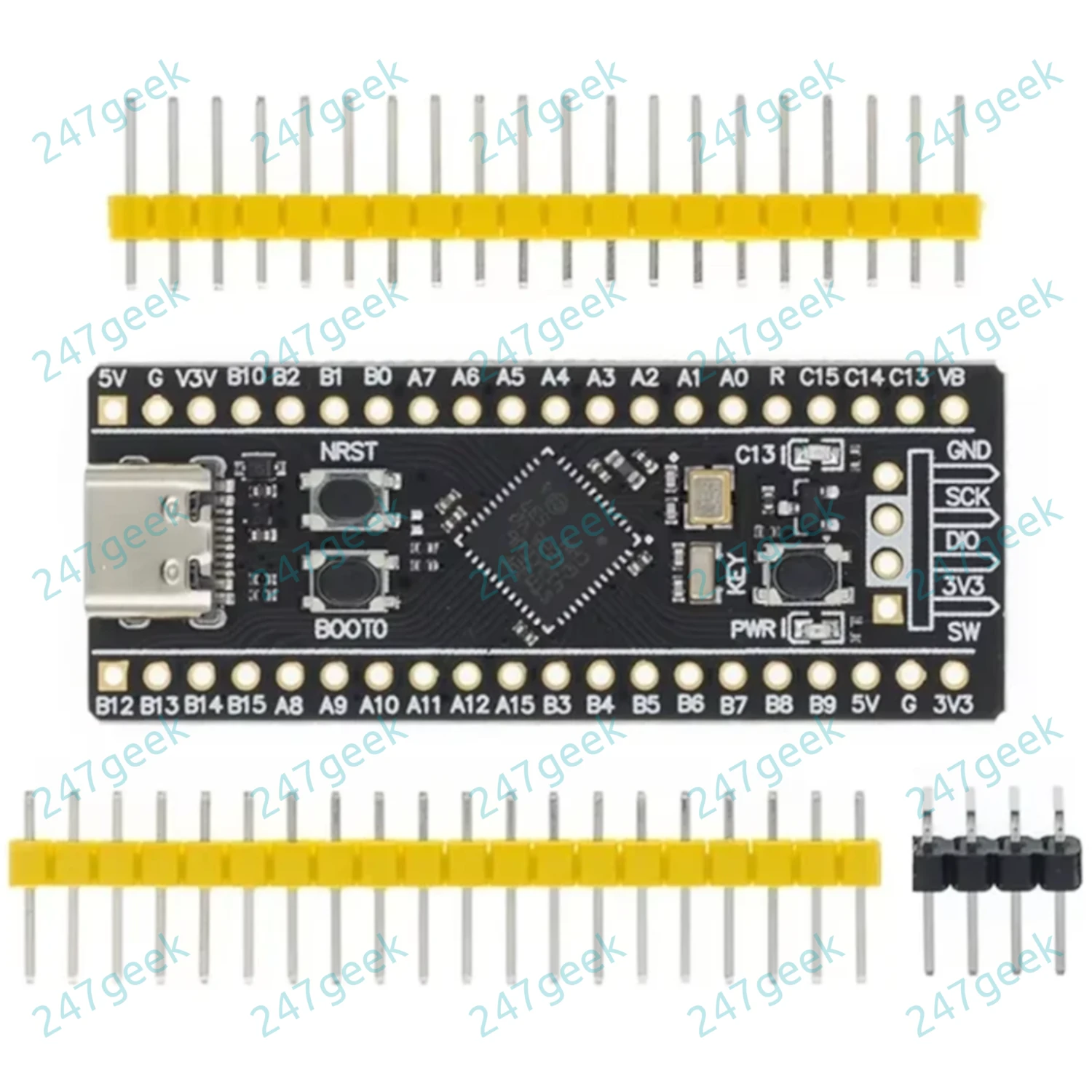

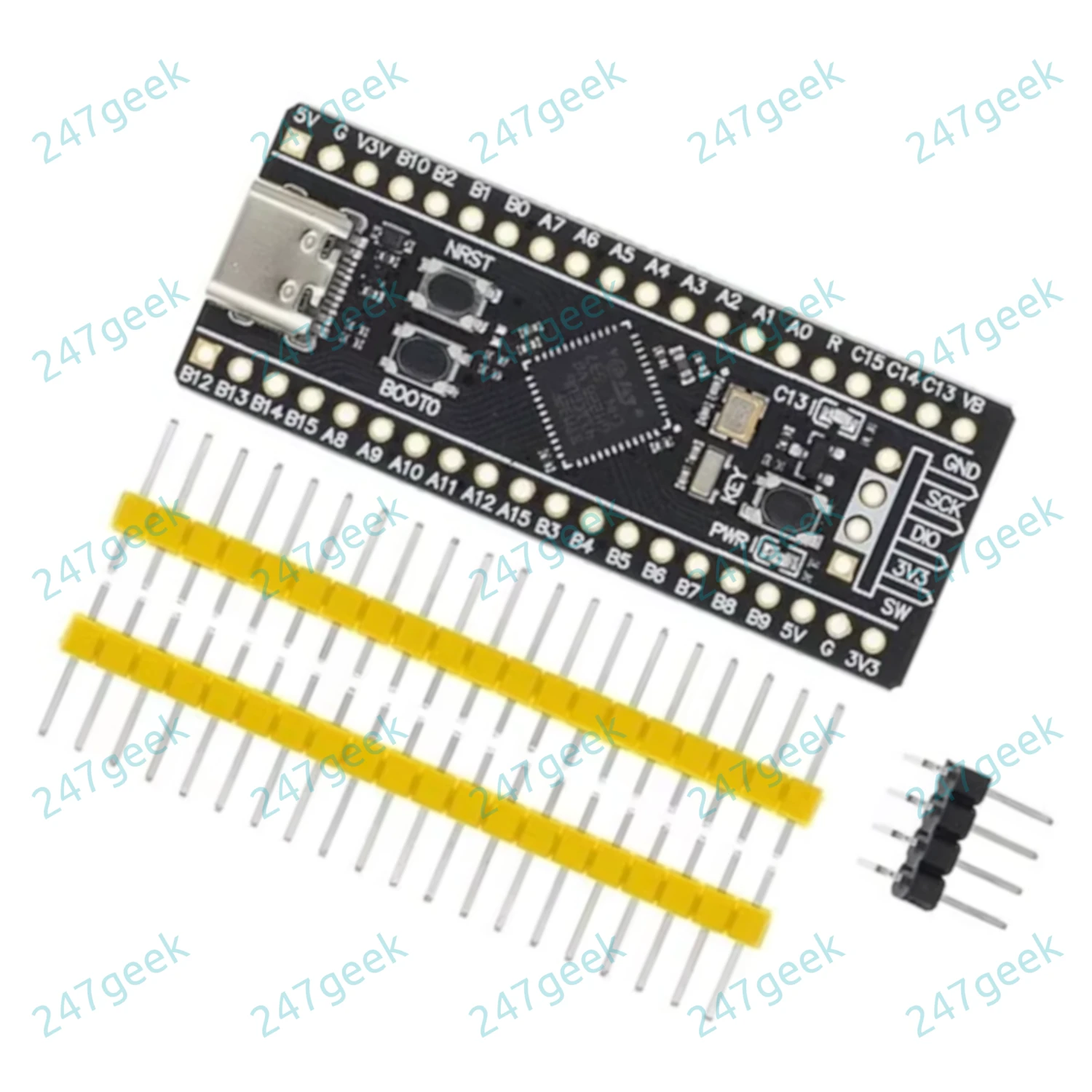

1x STM32F411CEU6 Black Pill Development Board with 0.1" headers & SWDIO/SWCLK programming header
