LED Display Module TM1638 8 Digit 7 segment Red 0.36" with 8 Buttons 8 LEDs + 5 Cables

   for Arduino ESP8266 ESP32 STM32 Raspi

TM1638 7 Segment Display Keypad & LED Module

This 8 digit 7 segment display module uses a TM1638 controller allowing

full control of the display using just 3 digital pins on a micro-controller.

In addition to the 7 segment display there are 8 individually controllable 3mm LEDs

and a keypad with 8 push buttons arranged in a single row.

These can also be controlled through the TM1638 IC and so require

no extra digital pins.

A standard 5 pin header provides easy interface to the module from microcontroller.

8x push buttons,

8x 3mm LEDs

8 digit 7 segment LED common cathode display

Voltage: 5V DC

Wiring connections:

VCC

GND

STB CLK DIO connect to microcontroller IO port

Package Includes:

1x TM1638 Module

5x Cables

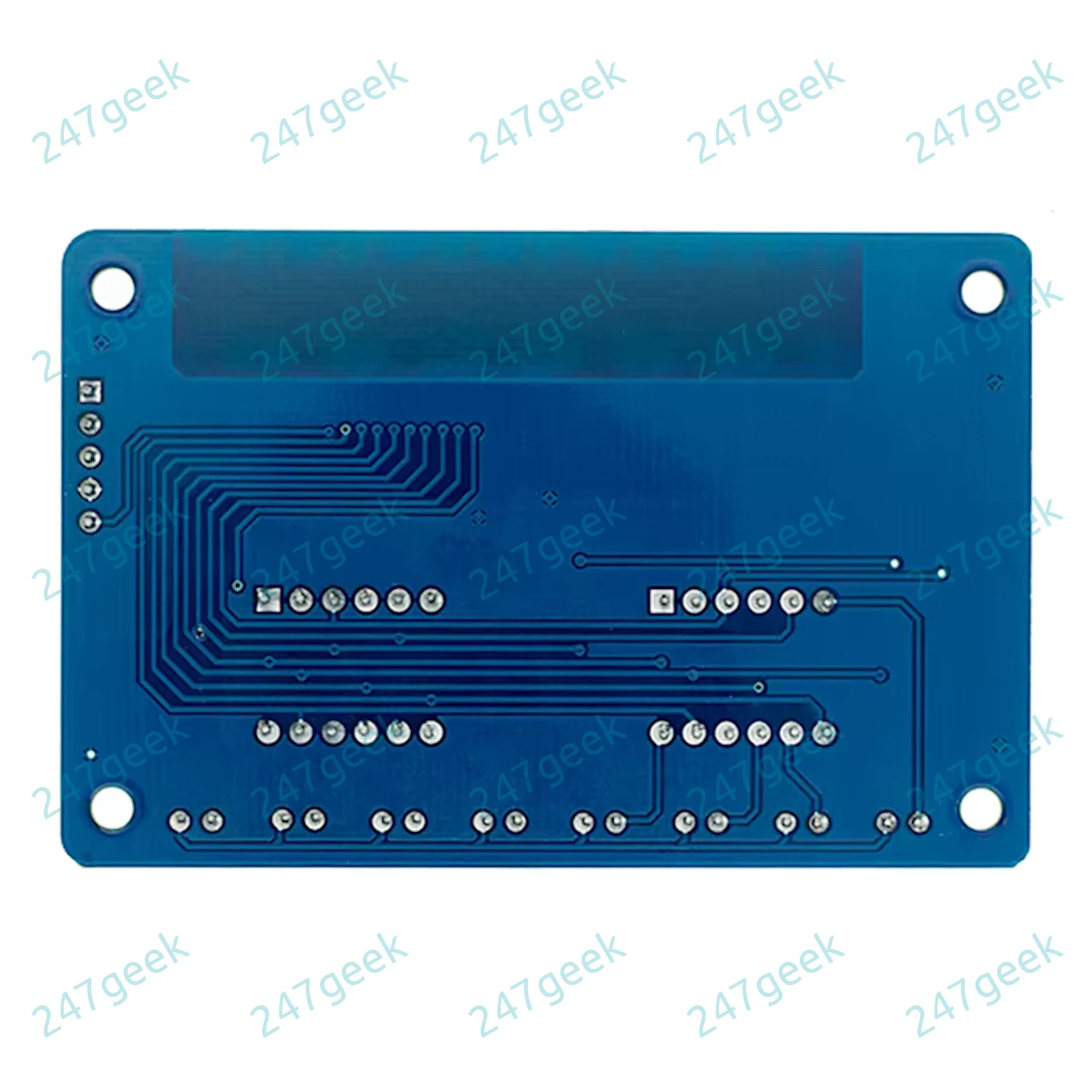

PCB Size: 76mm x 49mm

Operating voltage: 5V

LED Colour: Red

Interface: 3 pin CLK, DIO, STB

Supplied in Anti static protective bag

Examples of Arduino code here:

https://github.com/rjbatista/tm1638-library

More info here:

https://www.handsontec.com/dataspecs/display/TM1638.pdf

And here:

https://blog.3d-logic.com/2015/01/10/using-a-tm1638-based-board-with-arduino/
