Arduino CANbus CAN Module Car OBD2 OBDII MCP2515 with16MHZ Crystal

Description :

Ideal for Car OBDII / CAN BUS monitoring and control

Compatible with all popular MCP2515 Arduino Libraries

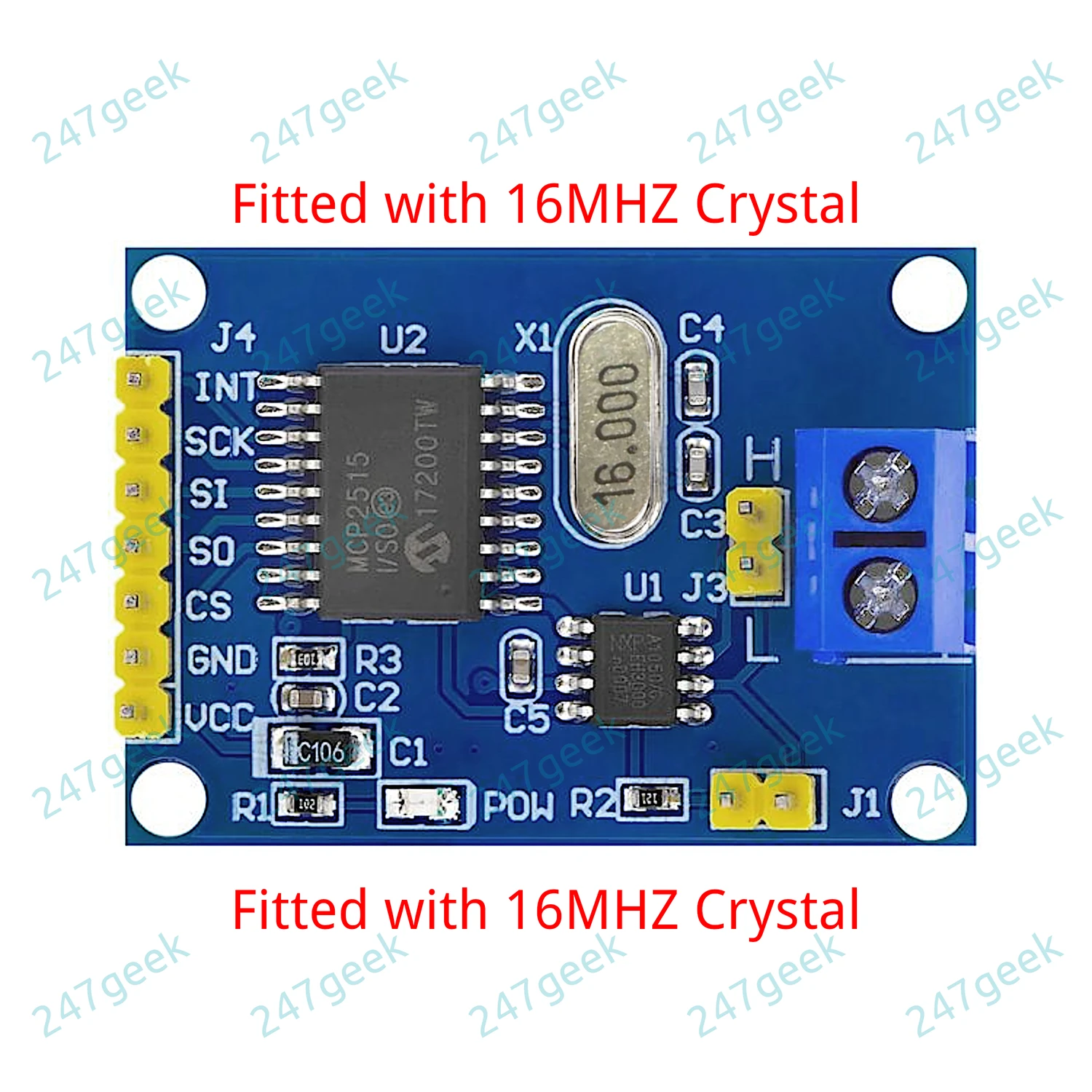

MCP2515 fitted with Faster 16MHZ Crystal

Standard (11 bit) and extended (29 bit) data and remote frames

SPI Interface up to 10 MHz

Two receive buffers with prioritized message storage

Implements CAN V2.0 A & B

CAN BUS rates of up to 1 Mb/s

Fully compatible with the “ISO 11898” standard

0 - 8 byte data field

Requires 5V supply voltage

SPI interface

Built in optional termination resistor

CAN BUS Interface IC is TJA1050

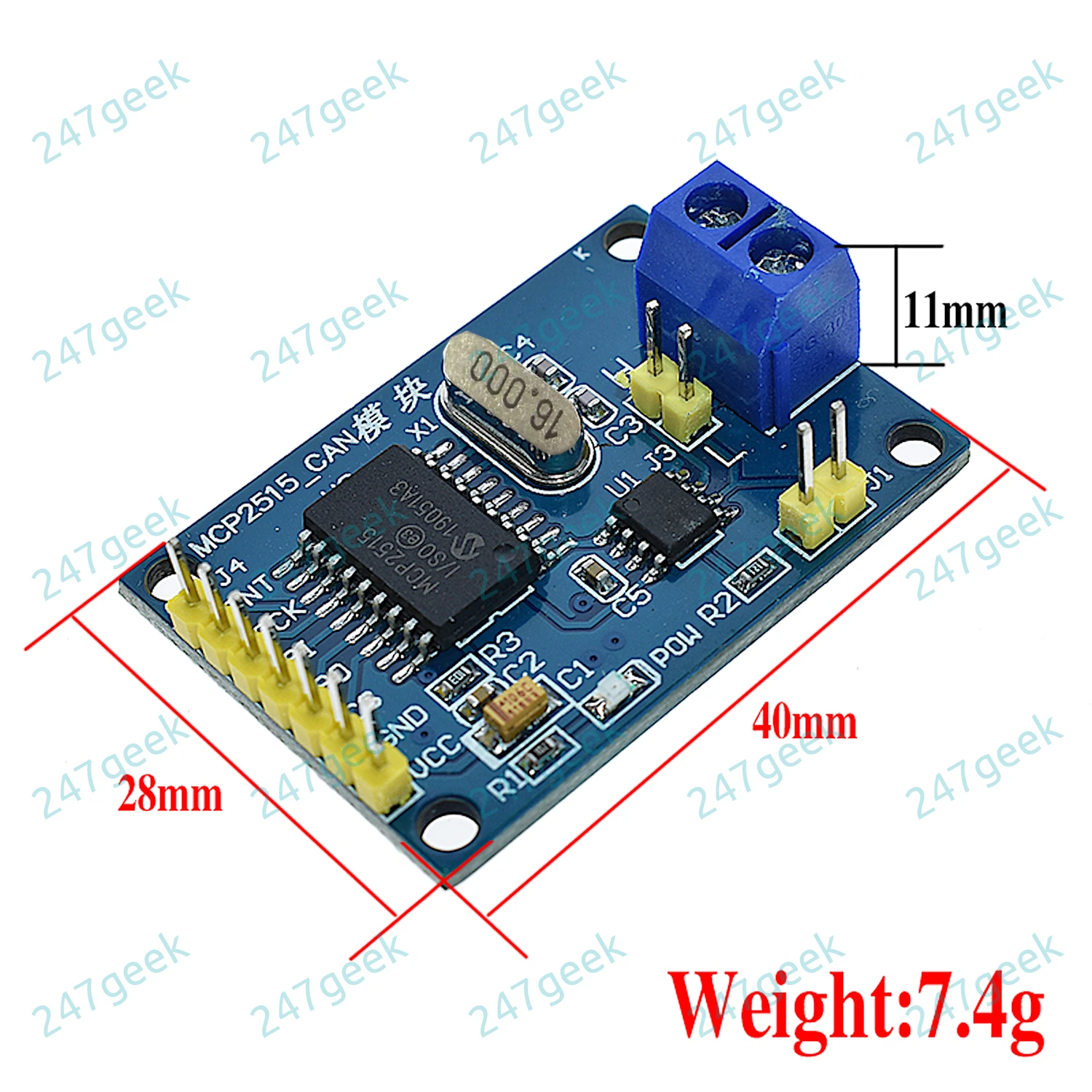

module size: 44mm x 28mm

hole spacing 23mm x 38mm

Current: typ. 5mA, 1 microamp standby current (Except LED)

Temperature Range: Industrial grade to 85 ℃ -40 ℃

Applications:

Industrial control CAN BUS

Car control / CAN BUS / OBDII

Arduino Library 1:

https://github.com/coryjfowler/MCP_CAN_lib

Arduino Library 2:

https://github.com/Seeed-Studio/CAN_BUS_Shield

Datasheet for MCP2551:

https://files.seeedstudio.com/wiki/CAN_BUS_Shield/resource/MCP2515.pdf

Datasheet for TJA1050:

https://www.nxp.com/docs/en/data-sheet/TJA1050.pdf

Package Includes:

    1 x  MCP2515 16MHZ CAN Bus Module
