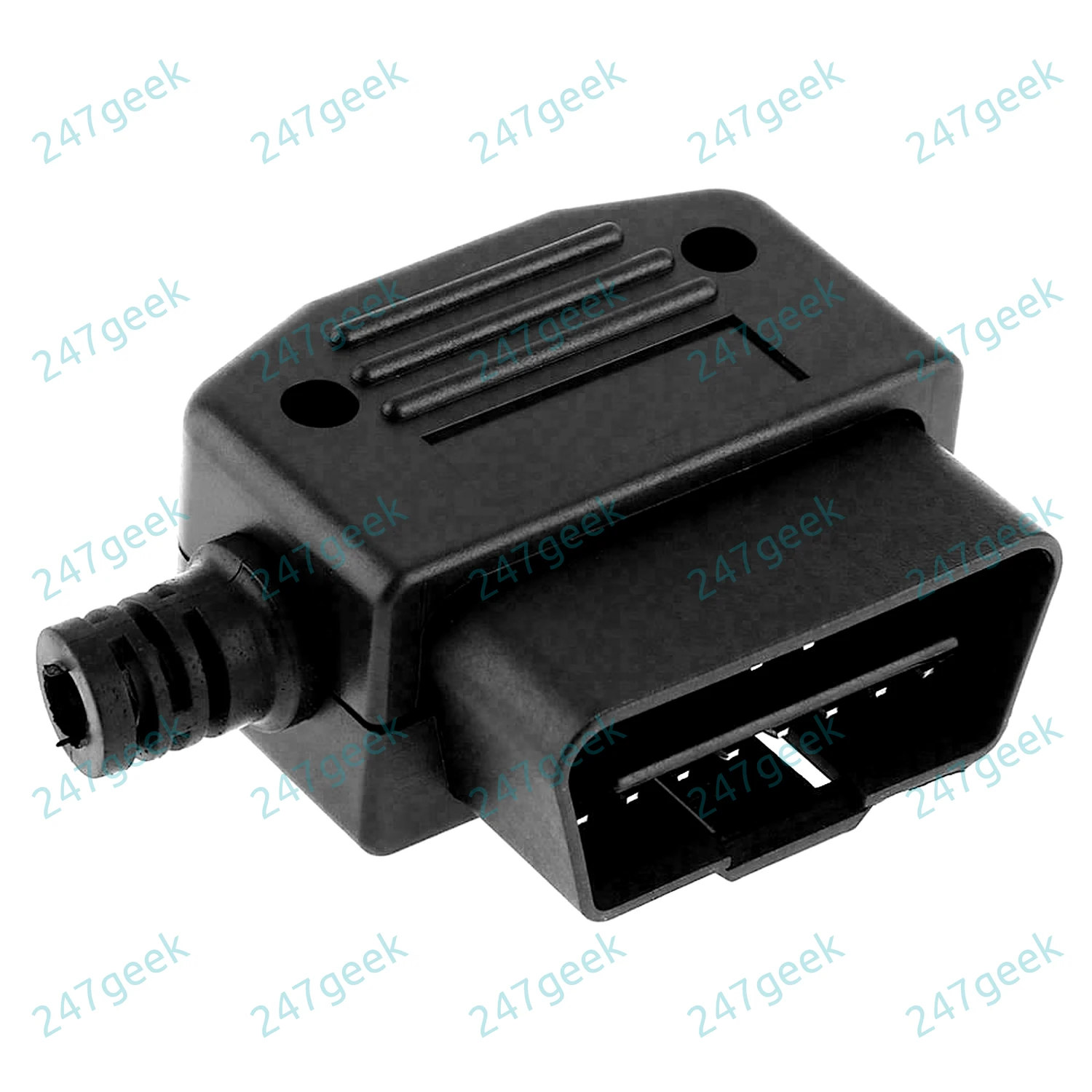

OBD2 CAN CANbus 16 Pin Male Connector (plugs into car OBDII Port)

Your cable exits from plug at the side.

Pin        Signal                    Description

2            J1850 Bus+

4            CGND                    Chassis ground

5            SGND                    Signal ground

6            CAN High            J-2284

7            K-LINE                   (ISO 9141-2 and ISO/DIS 14230-4)

10        J1850 Bus-

14        CAN Low               J-2284

15        L-LINE                    (ISO 9141-2 and ISO/DIS 14230-4)

16        +12v                        Battery power

Simple to use - Just solder your wires to the pins.

Could This Connector Be Used on My Vehicle?

This plug is compatible with all OBD II compliant vehicles. All 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all domestic, Asian and European vehicles.

A few of 1994 and 1995 model year gasoline vehicles are OBD II compliant. Please check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate 'OBD II Certified'. Additionally, Government regulations mandate that all OBD II compliant vehicles must have a 16-pin Data Link Connector (DLC).

If your vehicle is OBD II compliant, it must have a 16-pin DLC under the dashboard, and the Vehicle Emission Control Information Label located on the inside of the hood on most vehicles must state that the vehicle is OBD II compliant.

Package Includes:

1x 16 Pin OBD2 OBD 2 OBDII CAN CANbus Car Male Connector Plug
