Rotary Encoder EC11 Half Flat 20mm 5 pin (Top Clickable Switch)

20 positions per revolution - Continuous Rotation

Ideal for LinuxCNC Arduino, PIC, Raspi Projects for Menu Up / Down / Select

As used in Car Audio systems for On / Off / Volume.

Used in many Microwaves for setting time / Start Button.

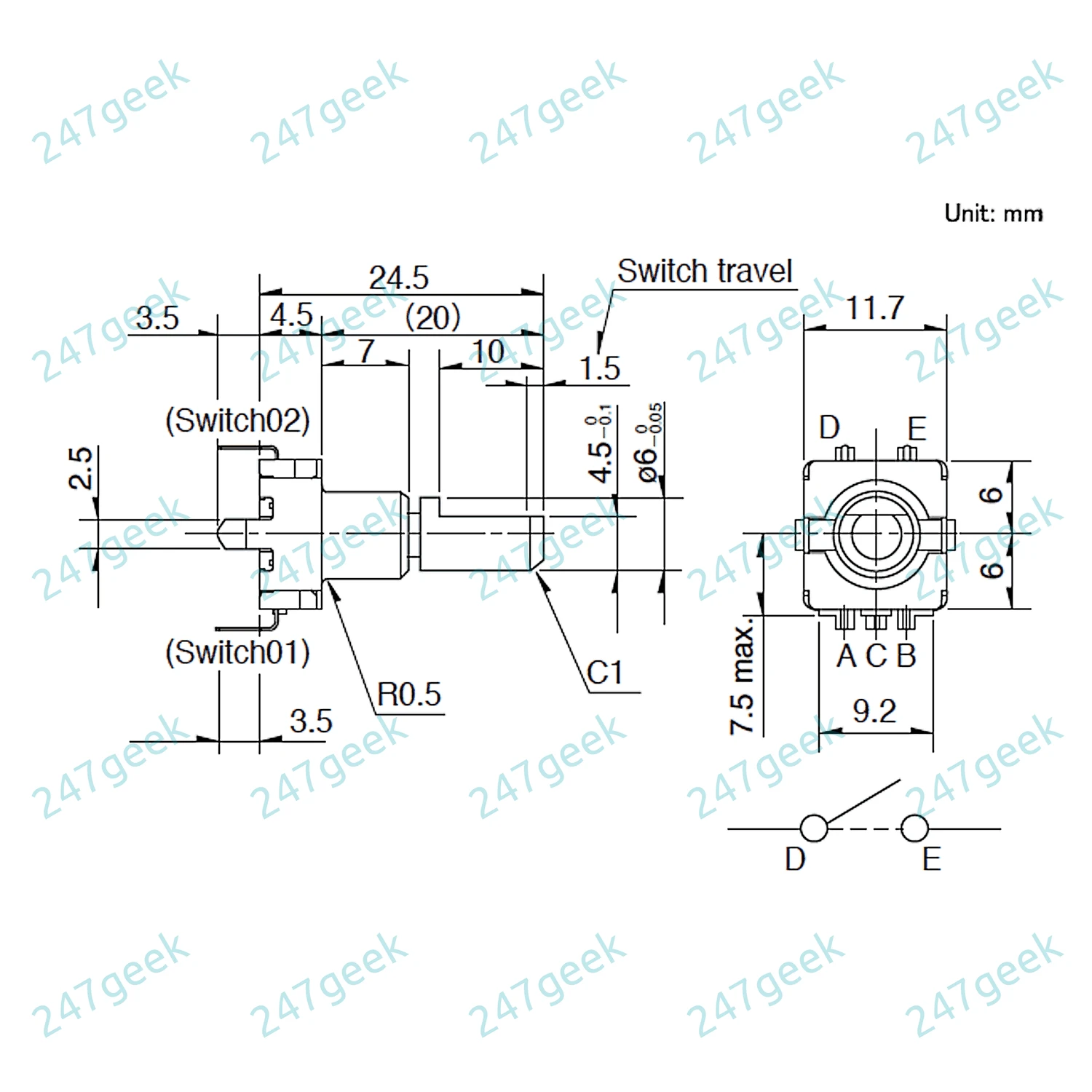

Rotary Encoder Specifications:

Size (L x W): Approx. 15 x 12mm

Shaft Full Length: Approx. 20mm

Shaft Diameter: Approx. 6-6.5mm

Shaft Length (flat part): Approx. 10mm

Output: 2-bit gray code

Closed Circuit Resistance: 3 ohms maximum

Max. Rating: 10 mA @ 5 VDC

Shipping list :

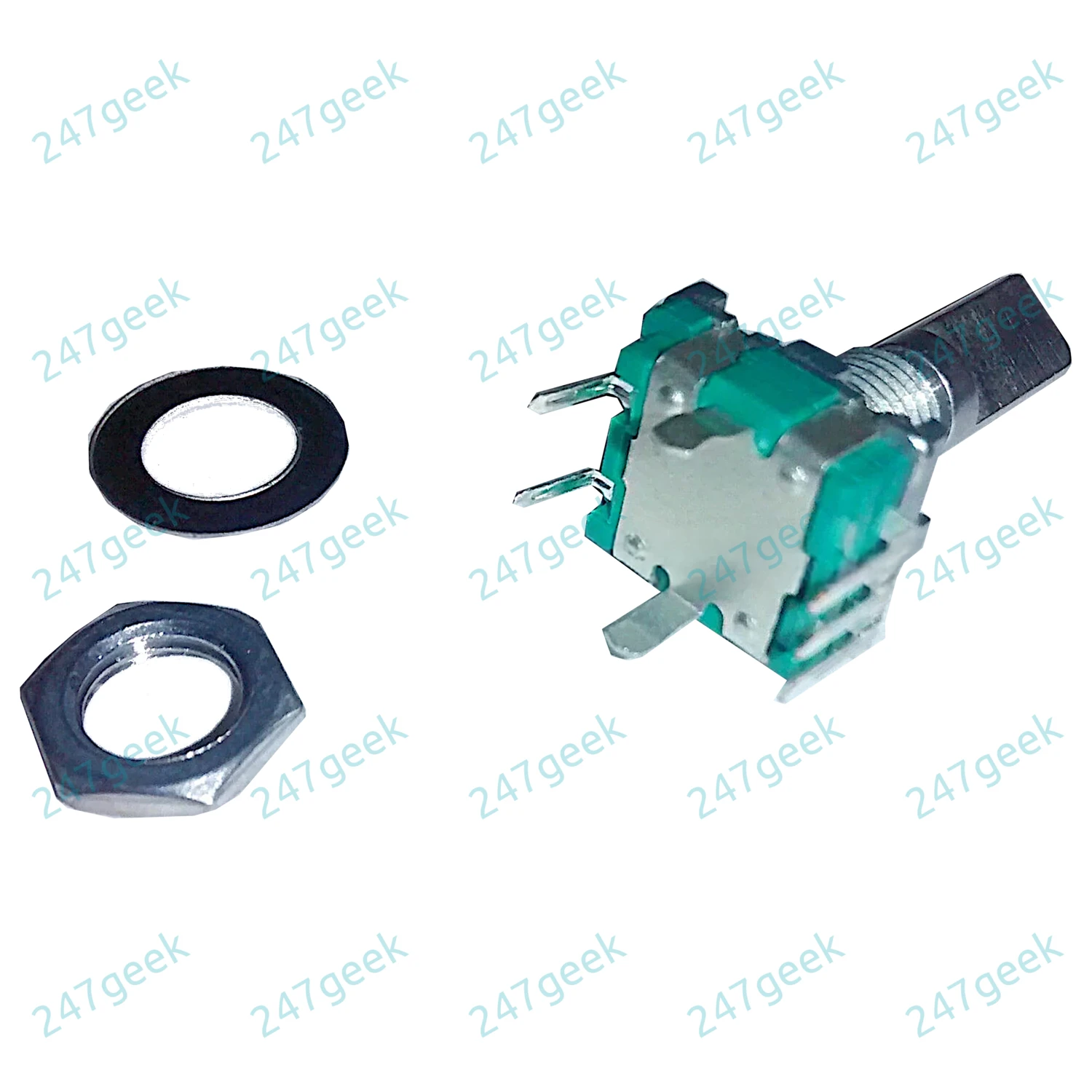

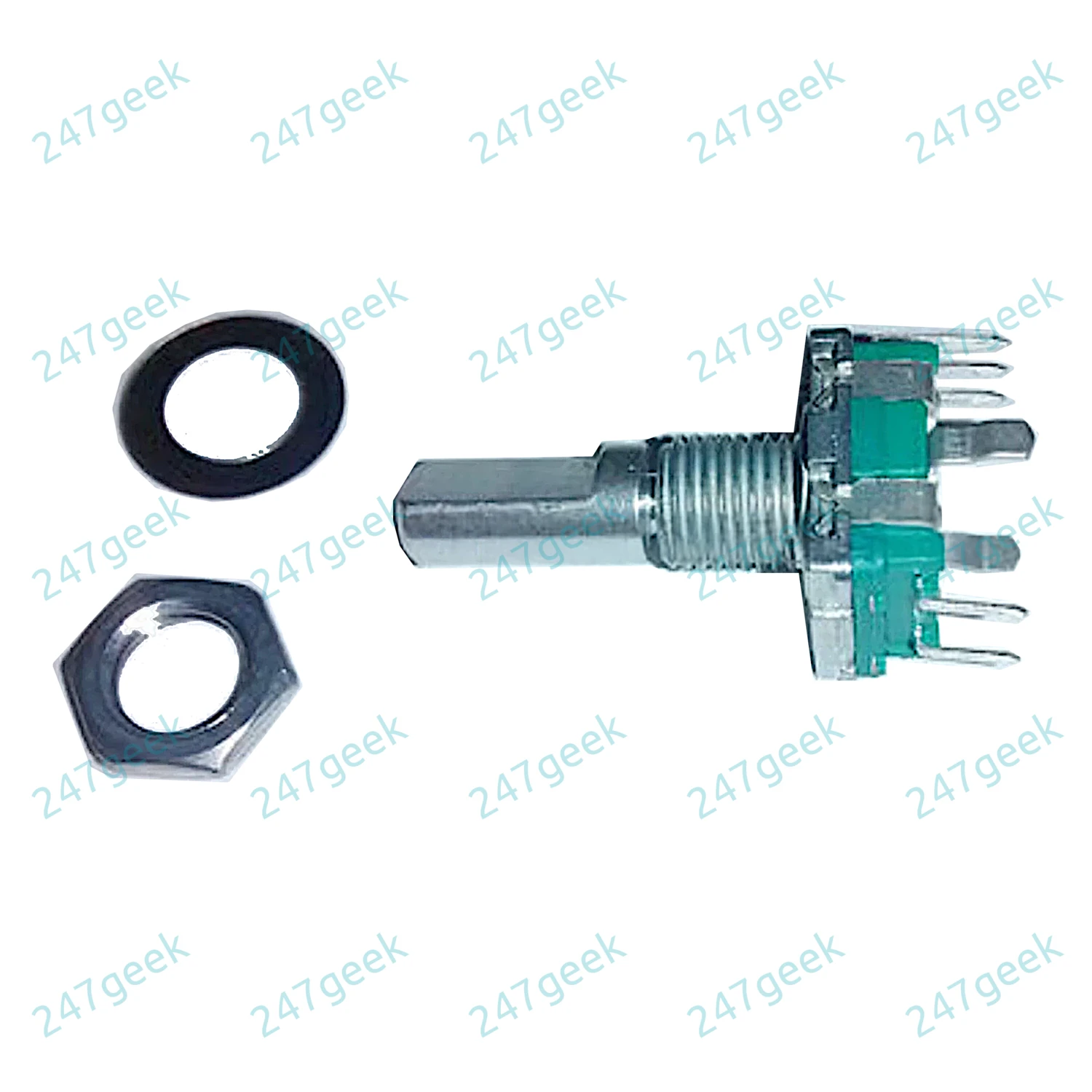

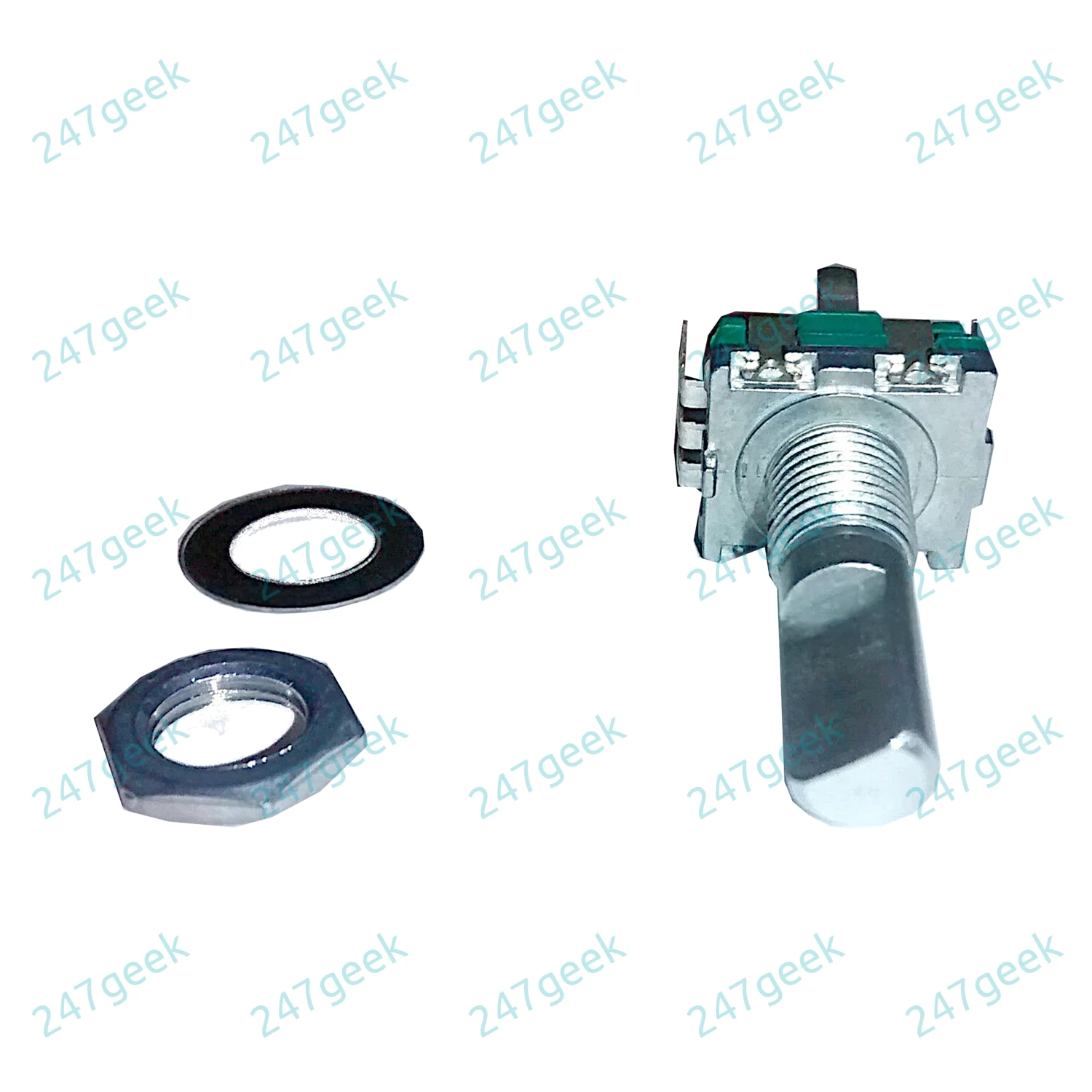

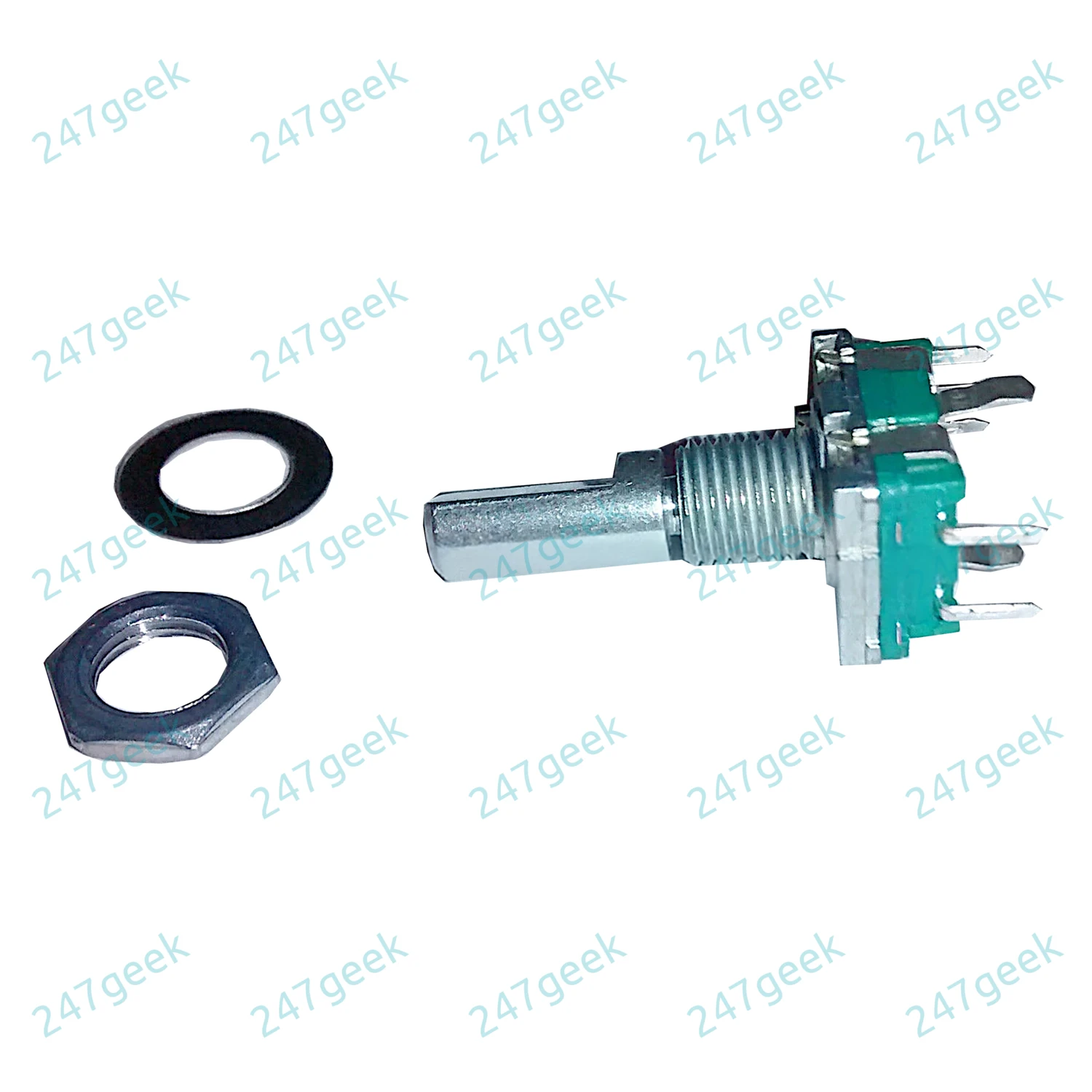

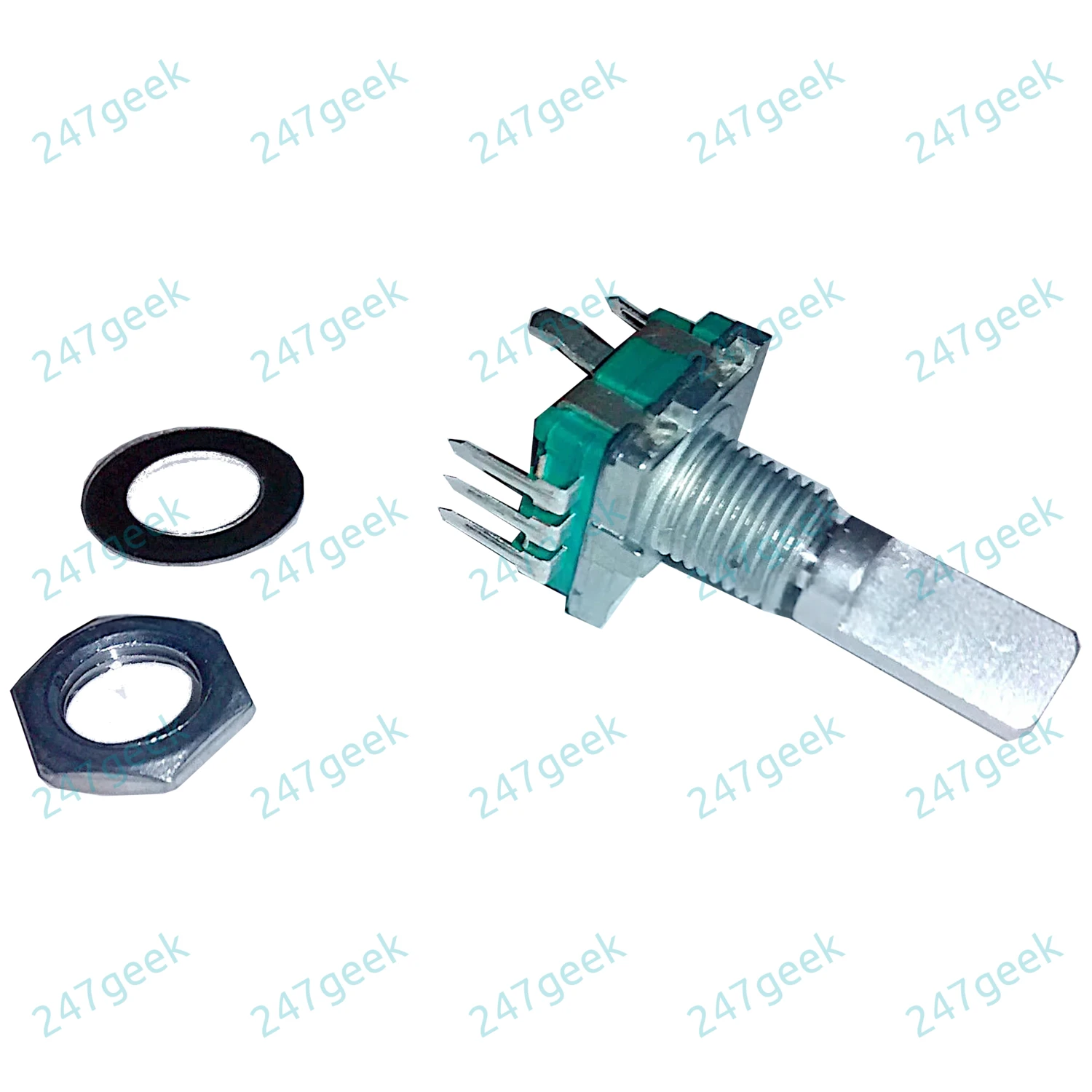

1x Clickable Rotary Encoder EC11 Half Flat 20mm

1x Washer

1x Nut
