Rotary Encoder 5 pin Top Clickable Switch + Knob + PCB

20 positions per revolution - Continuous Rotation

Supplied with Black Plastic Knob with white pointer

Ideal for LinuxCNC Arduino, PIC, Raspi Projects for Menu Up / Down / Select

As used in Car Audio systems for On / Off / Volume.

Used in many Microwaves for setting time / Start Button.

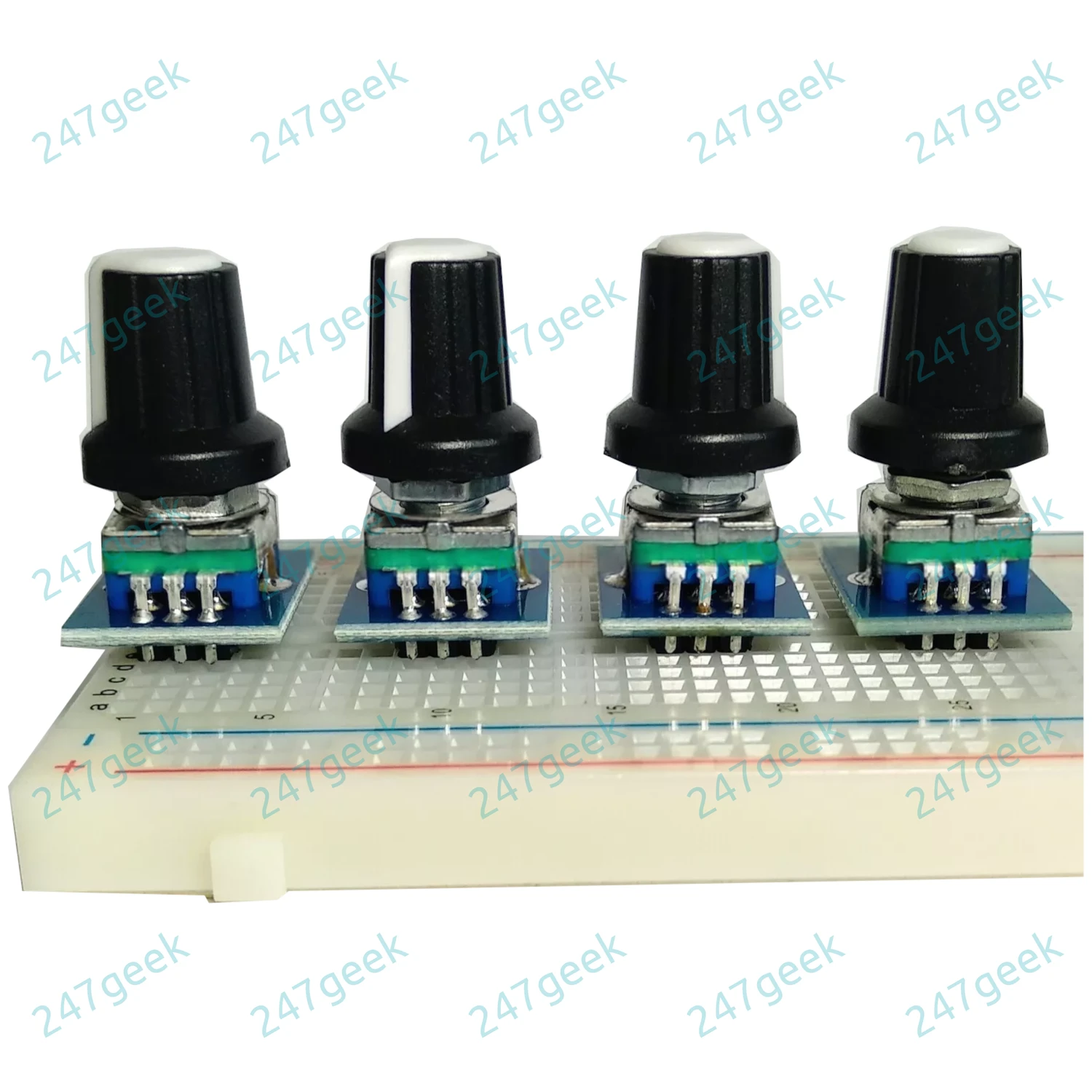

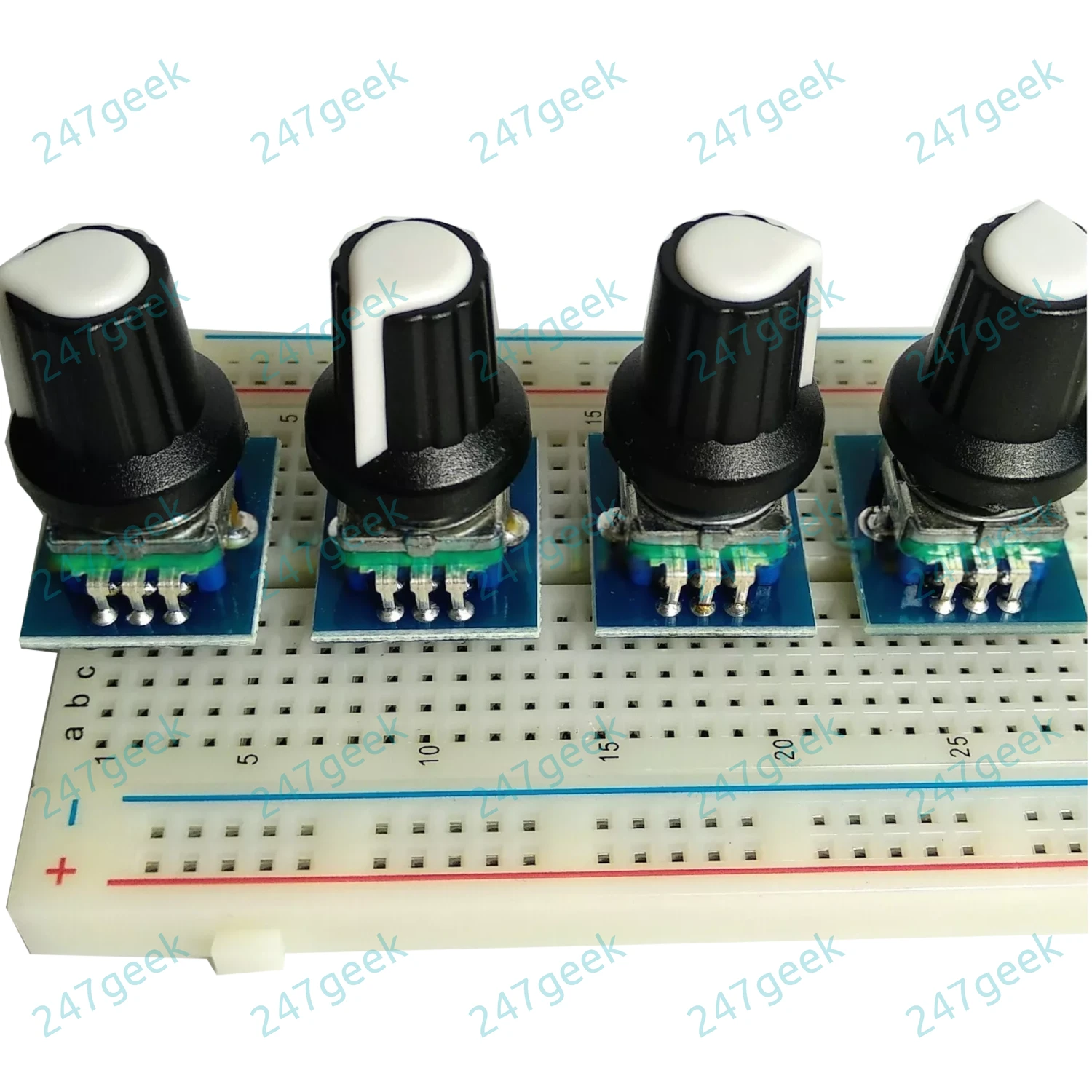

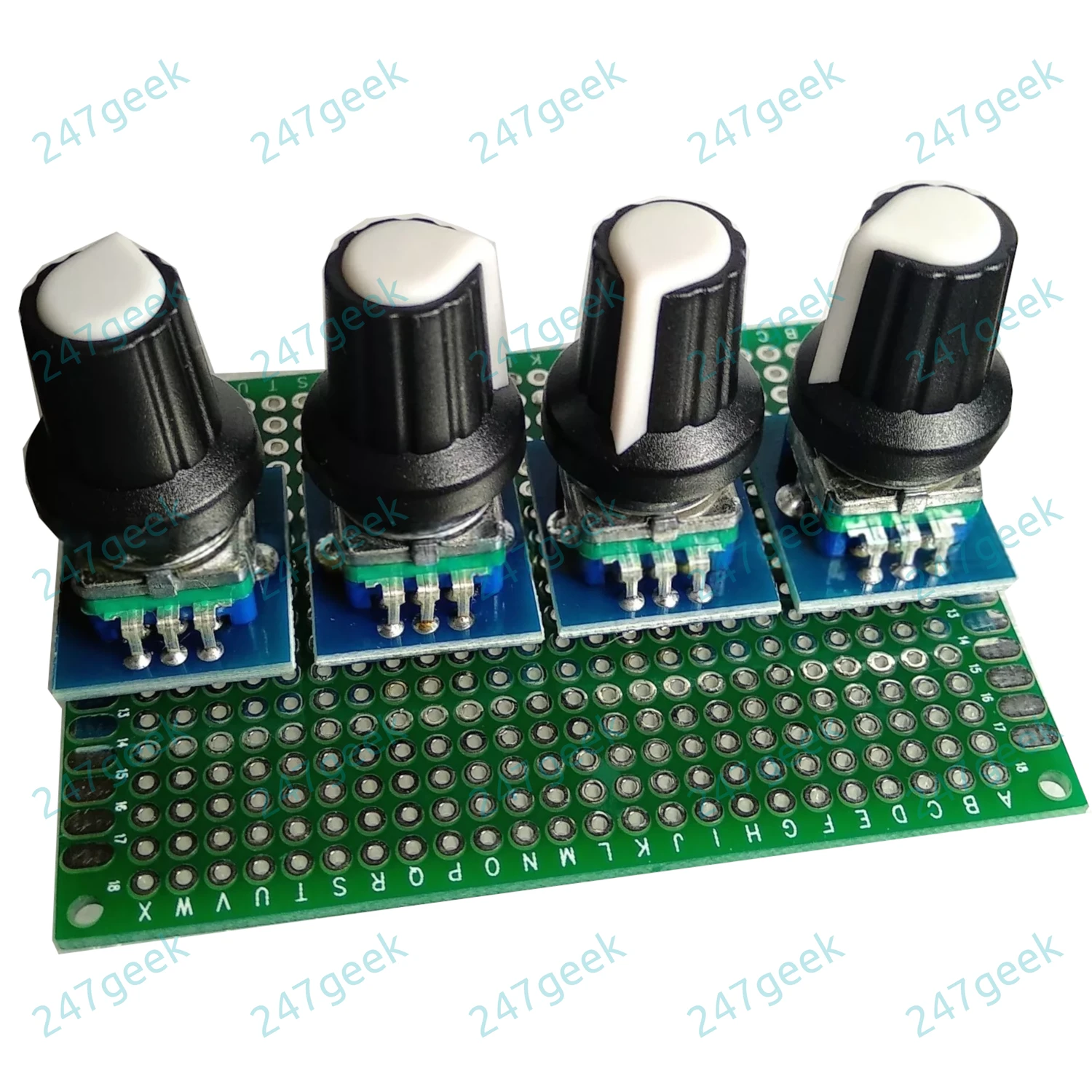

All pins are on a 0.1" grid spacing and can be plugged into solderless breadboard

   or soldered into matrix / prototyping board

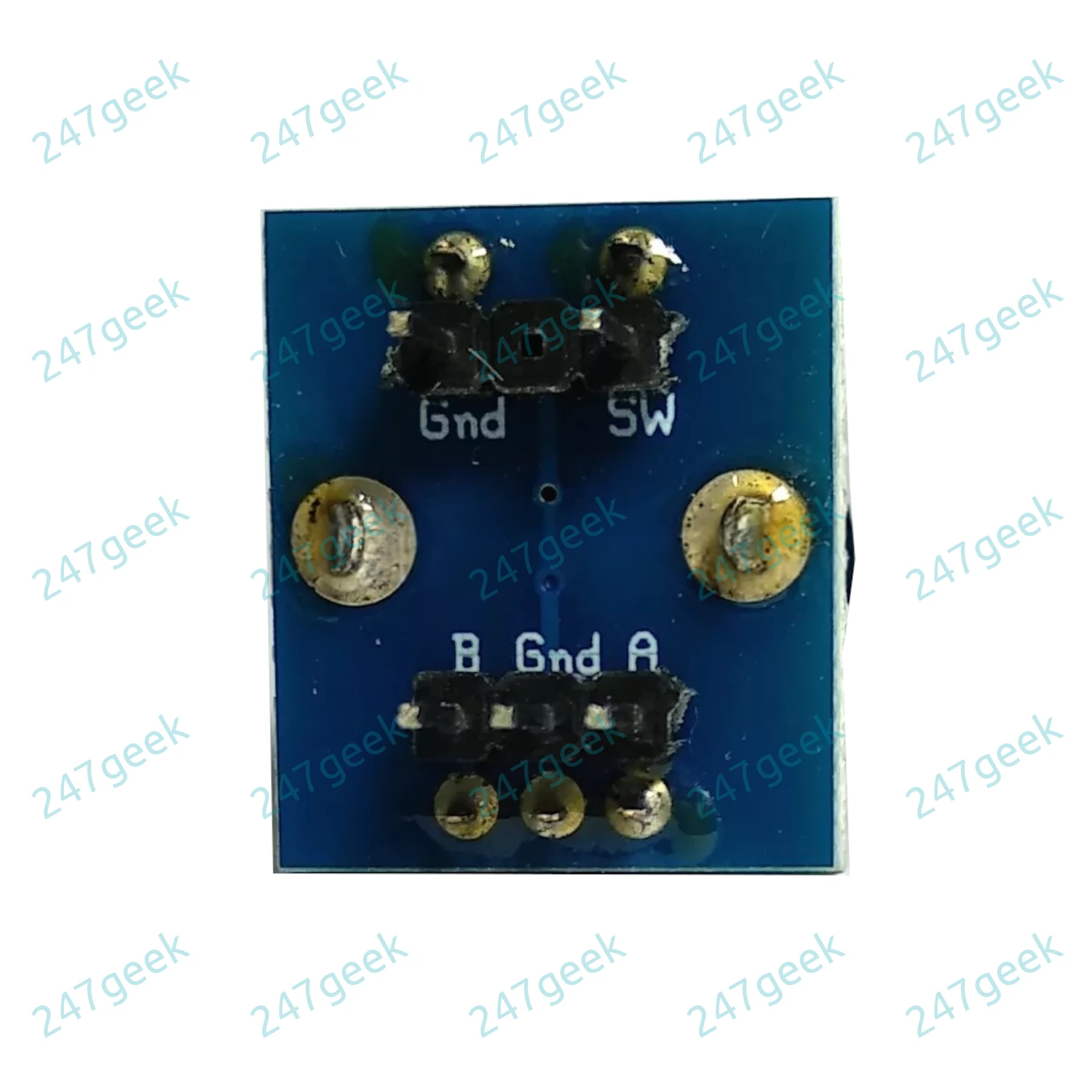

One pin of Switch is connected via PCB track to encoder centre (GND) pin,

   but you can easily cut this if required so switch pins are isolated from encoder pins.

Solderless breadboard & matrix board are for illustration purposes only and are NOT supplied

Rotary Encoder Specifications (NOT including PCB):

Size (L x W): Approx. 15 x 12mm

Shaft Full Length: Approx. 15mm

Shaft Diameter: Approx. 6-6.5mm

Splines Shaft Length: Approx. 5.5mm

Output: 2-bit gray code

Closed Circuit Resistance: 3 ohms maximum

Max. Rating: 10 mA @ 5 VDC

Shipping list :

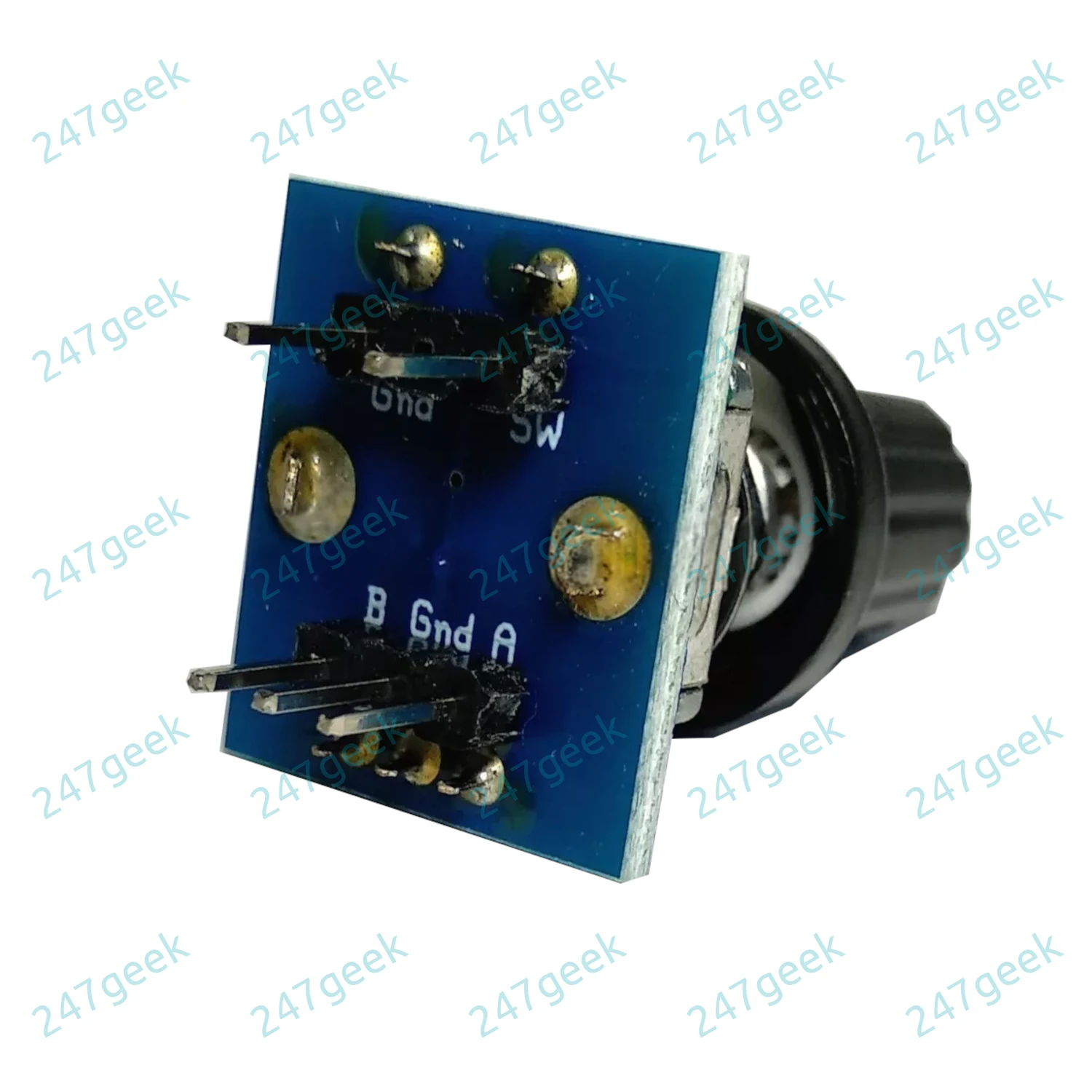

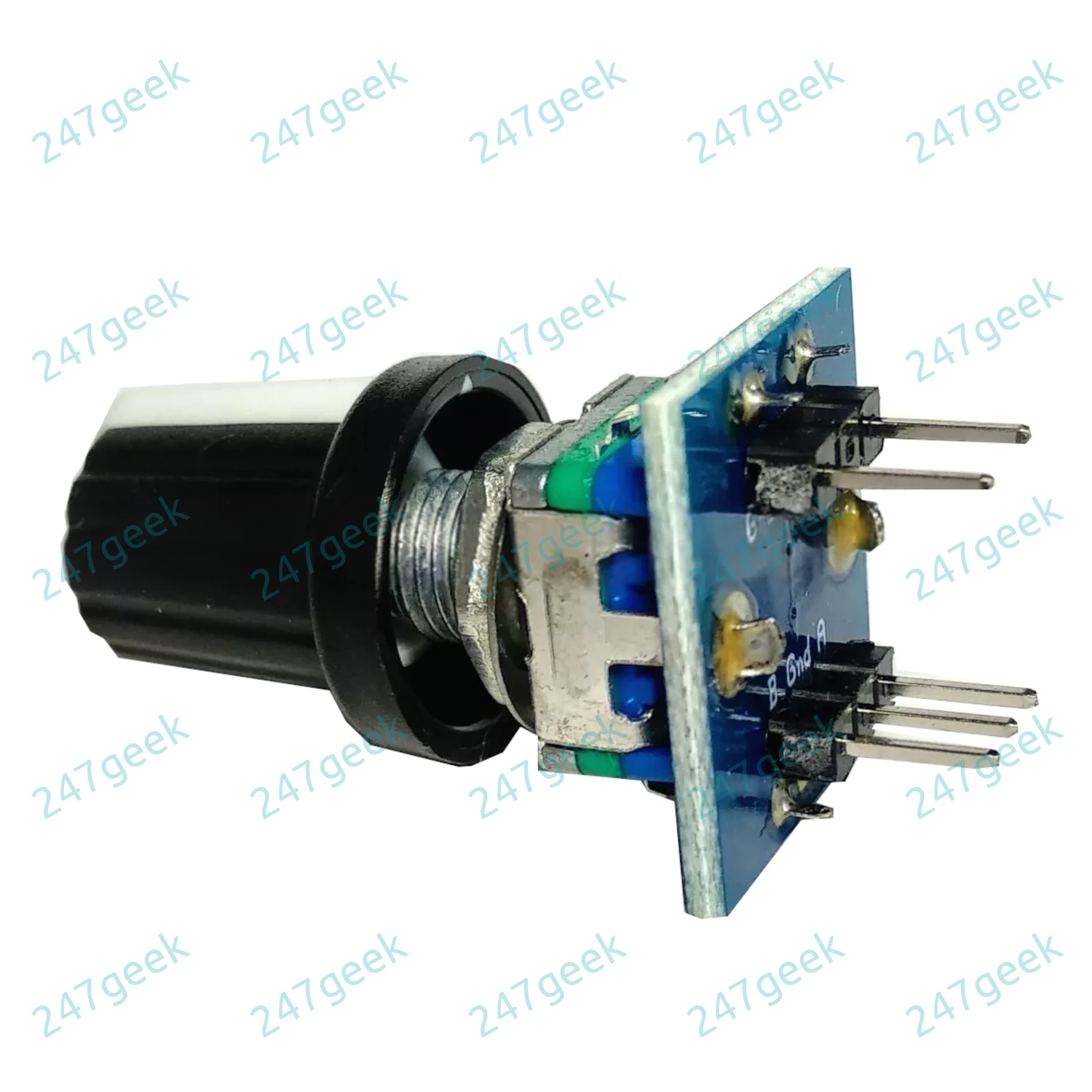

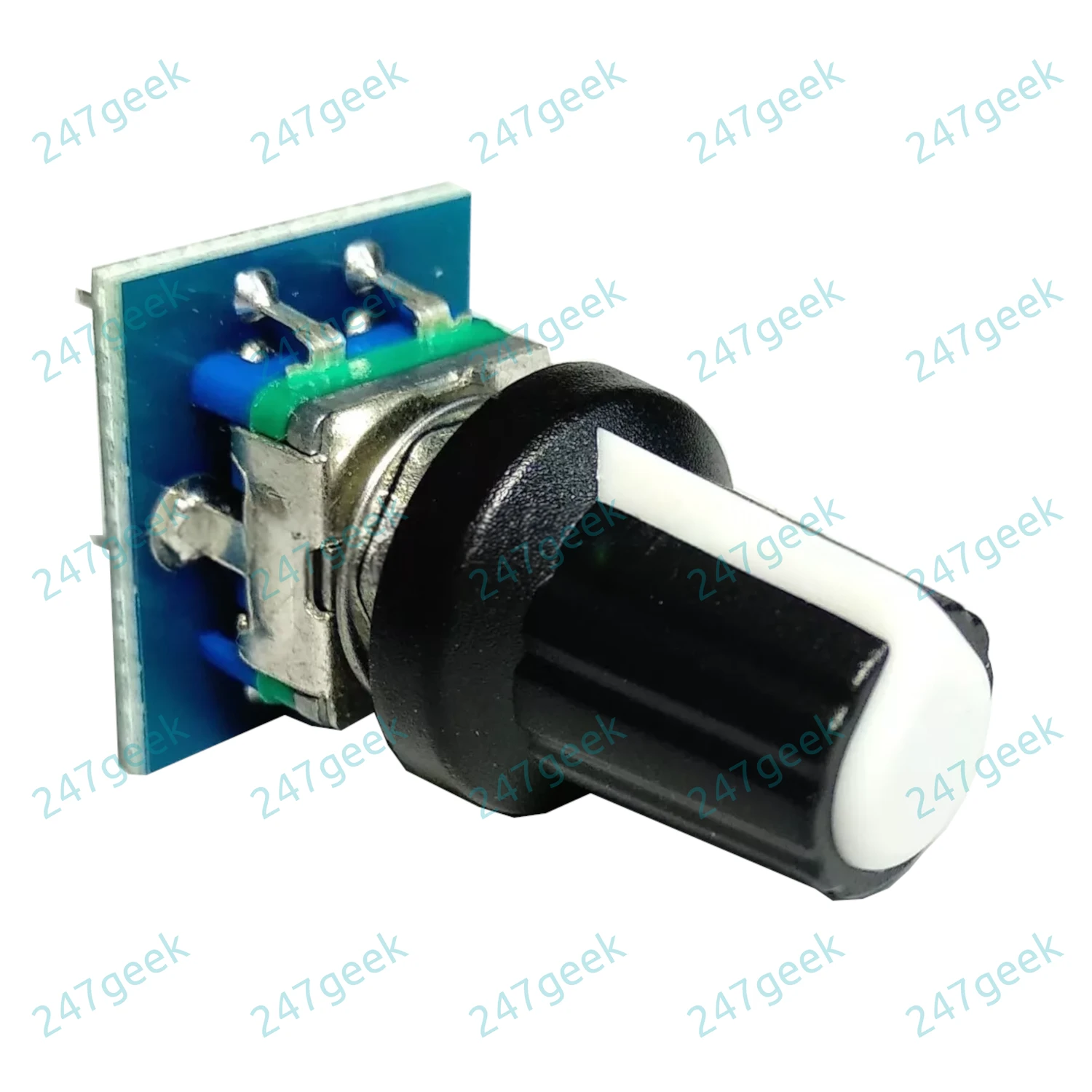

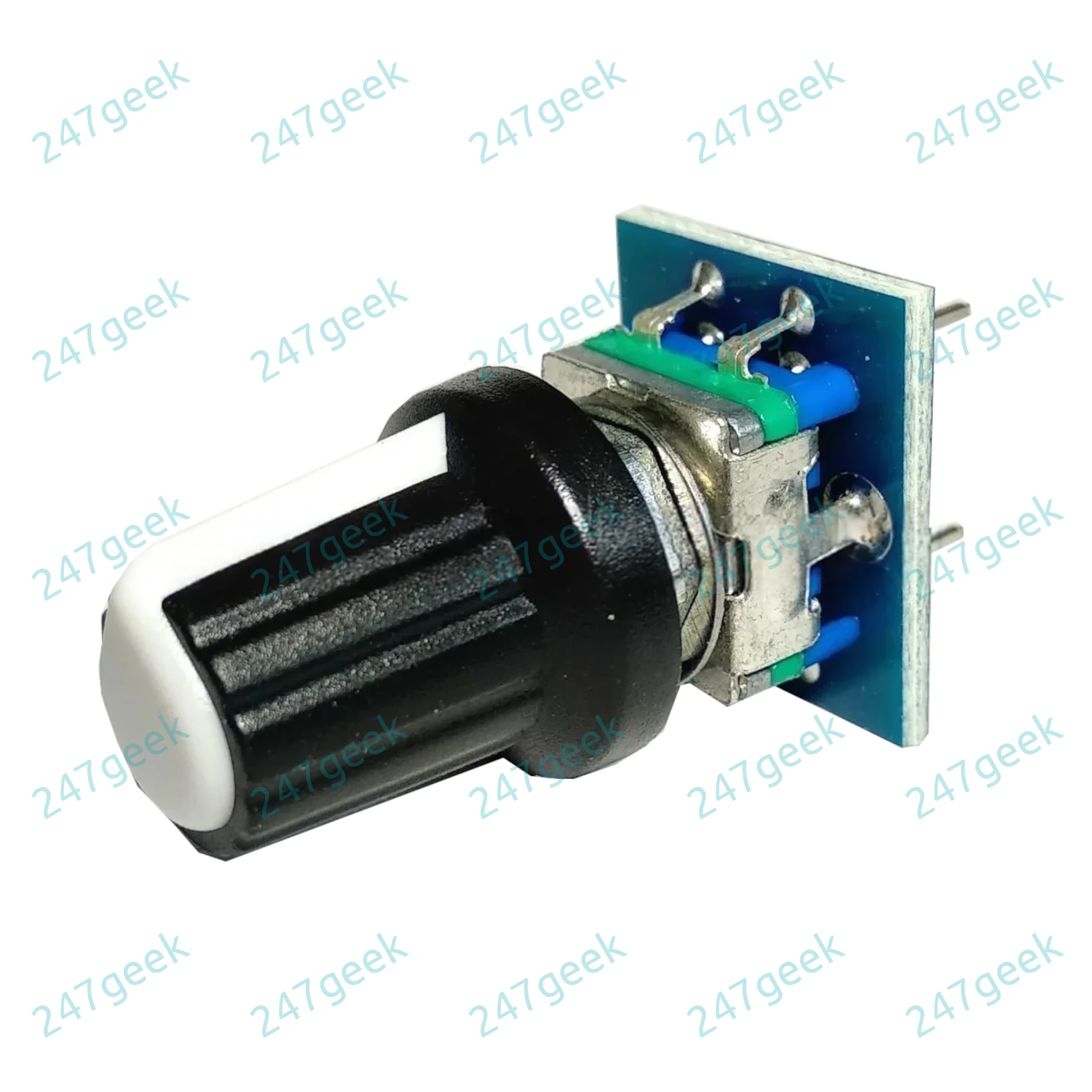

1x Clickable Rotary Encoder 5 pin on PCB with soldered 0.1" pins

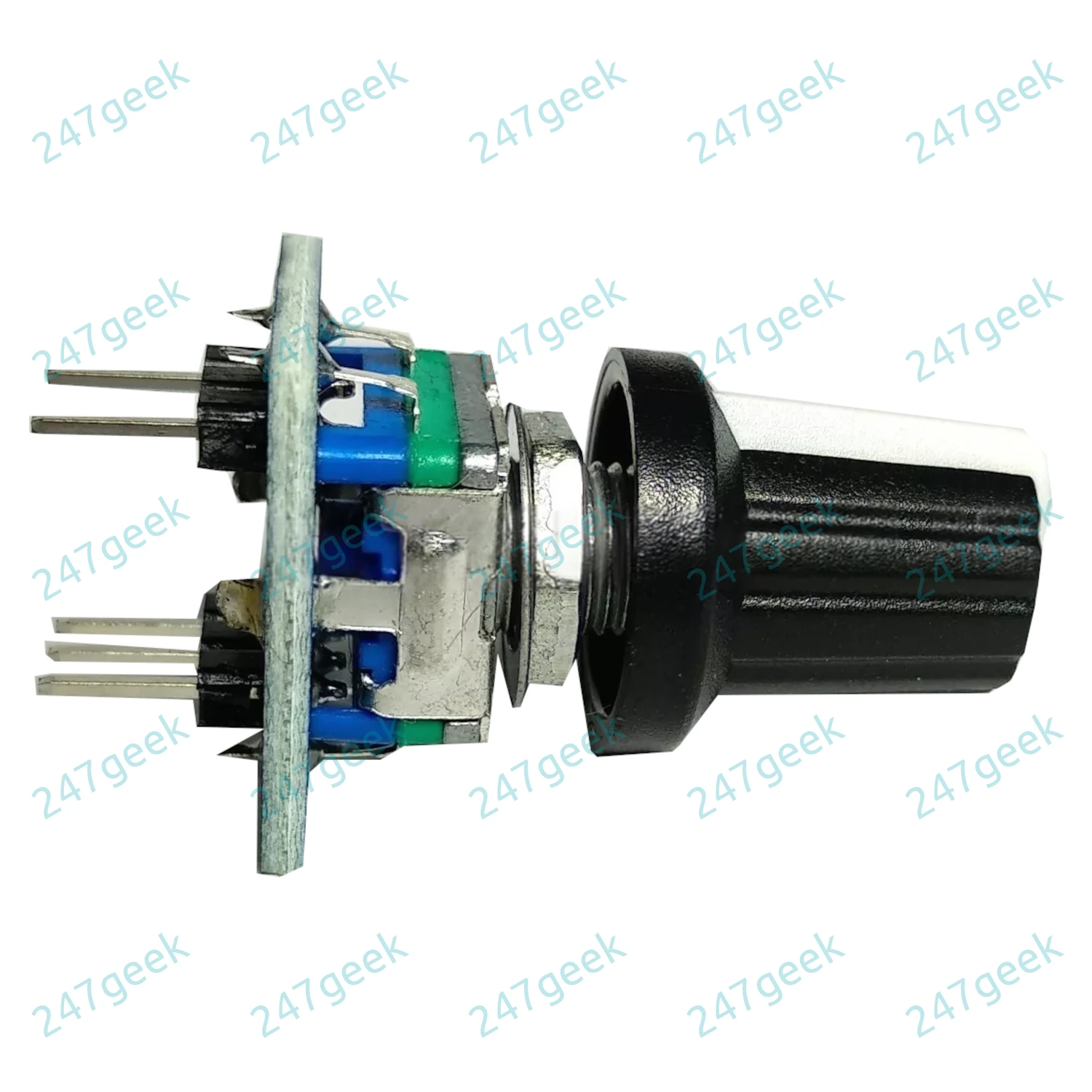

1x Washer

1x Nut

1x Black Plastic Knob with white pointer
